Trondheim, Norway – June 2025
This case study presents the powerful range performance and advanced features. Despite its lower operating frequency compared to shallow water mapping sonars, the WINGHEAD B57S is compact and portable, making it suitable for a range of vessel sizes.

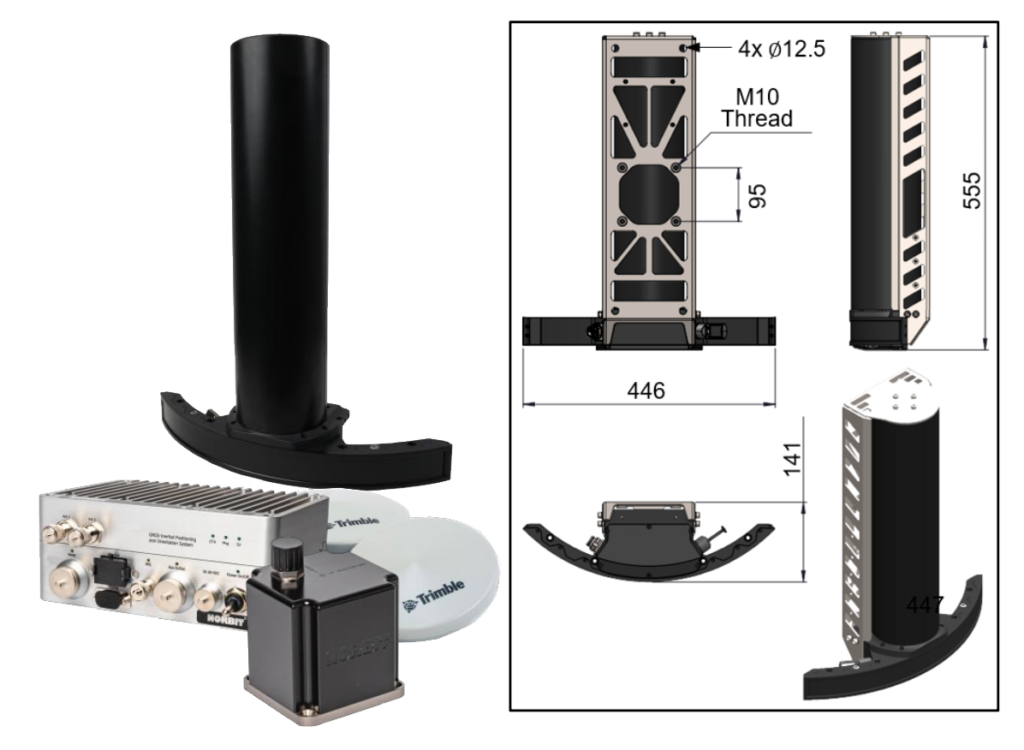

Equipment used:

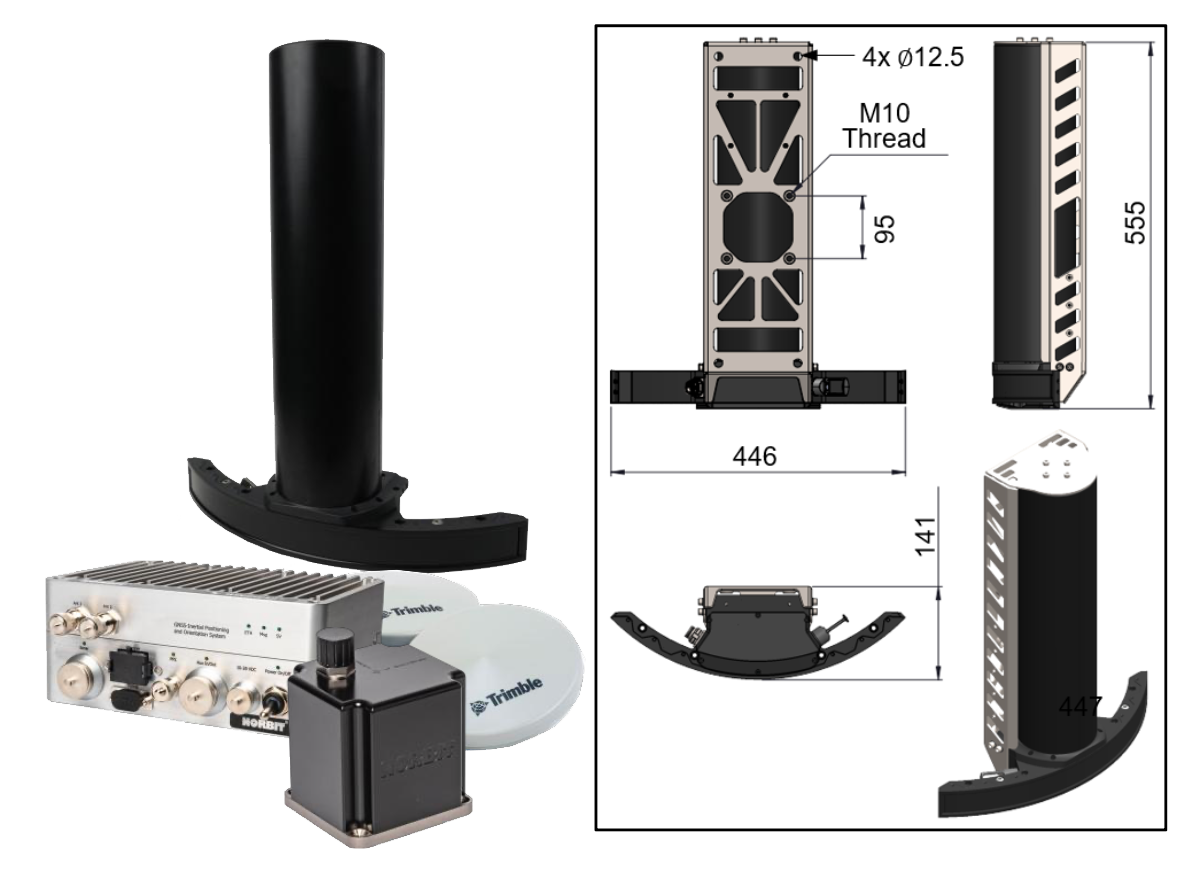

NORBIT WINGHEAD B57S, combined with Applanix OceanMaster GNSS/INS, featuring GNSS electronics tightly integrated in the topside unit, a detached IMU, and integrated INS software tools. Integrated sound speed sensor. NORBIT PORTUS mounting pole.

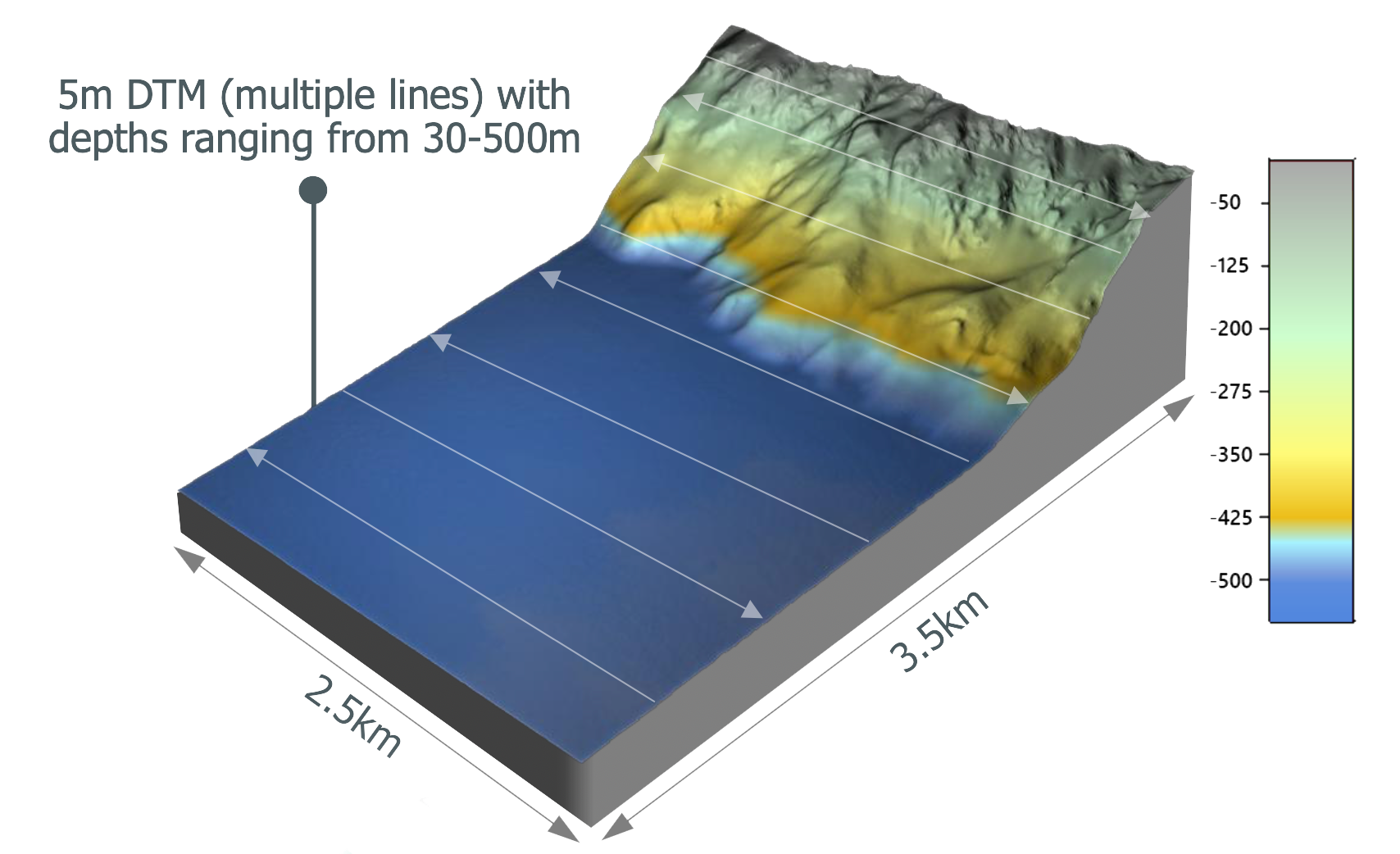

5m Digital Terrain Model
Product Overview
The WINGHEAD B57S is a lightweight multibeam sonar system for mapping shallow to medium water depths, providing high resolution data over long ranges.
- Frequency agile from 80-240kHz.
- Range performance exceeding 1250m.
- 2.0×2.0° beam widths at 100kHz and 1.0×1.0° at 200kHz.
- 1024 dynamically focused beams per ping.
- Full motion stabilisation (roll, pitch and yaw), ensuring
- uniform sounding coverage in dynamic sea states.
- Dual Swath generates 2048 beams, offering greater
- sounding density and reduced survey time.
- Mounting bracket included.
- The system weighs 15.3kg in air (excluding bracket).
WINGHEAD B57S Multibeam Survey System

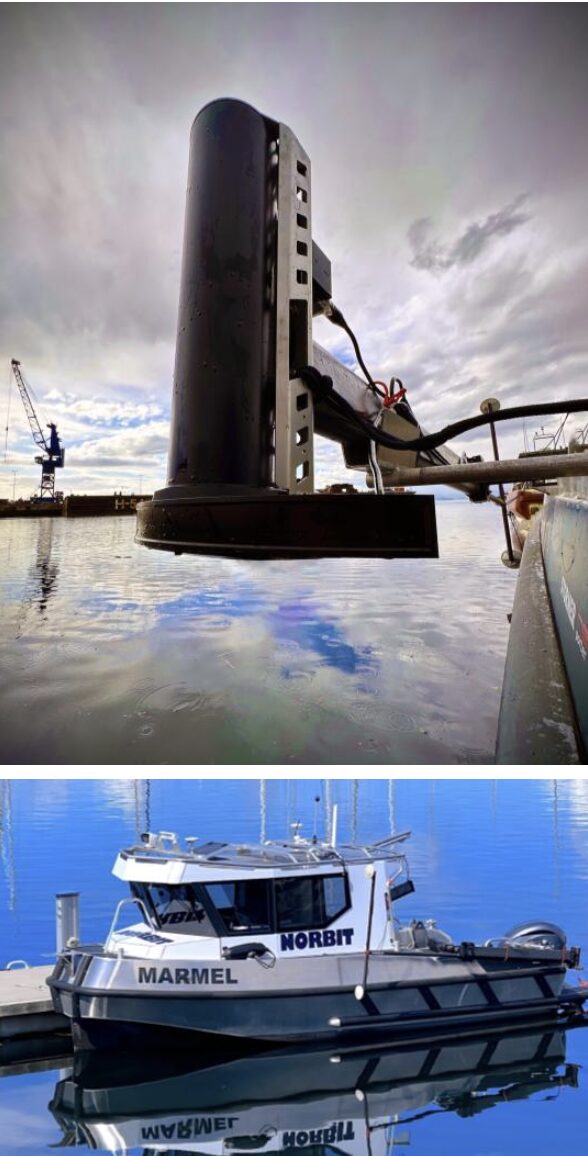

Installation using the Portus Pole
The compact form factor allows the entire system, including the sonar, cable, and topside unit to be transported in a single Pelicase. Unlike traditional lower frequency systems, which typically require multiple cables for the transmitter, receiver and sound speed probe, the WINGHEAD B57S uses a single cable for easier deployment.
The system draws very little power (typically <95W) despite its long-range performance capability. Rapid deployment and recovery of the sonar makes it well-suited for temporary installations on small vessels as well as permanent installations on ocean-going vessels.

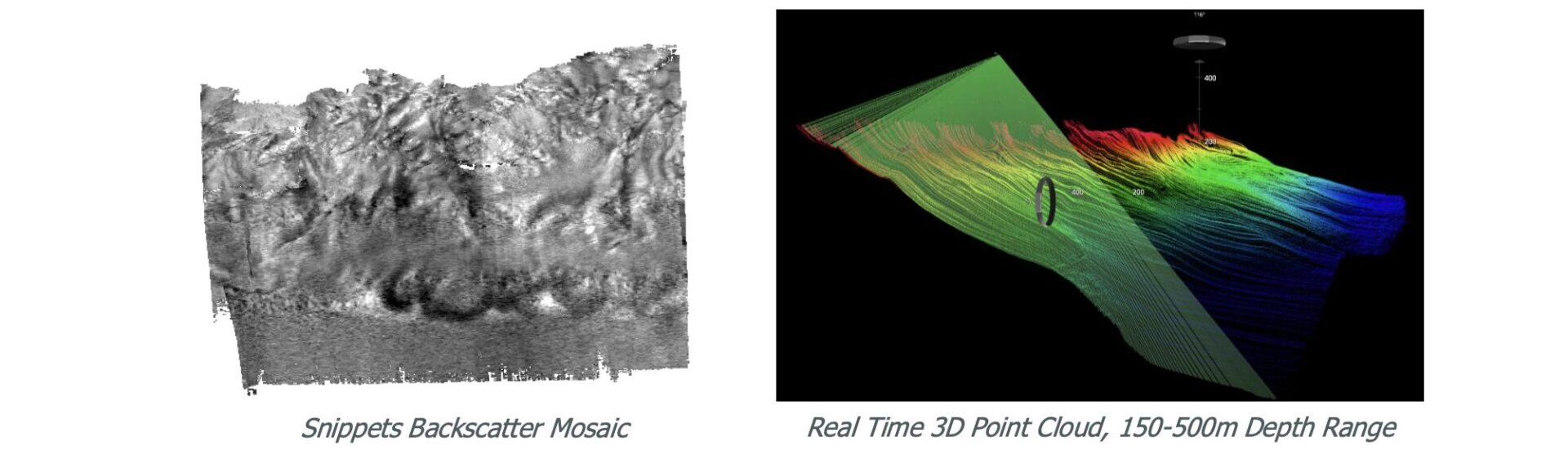

Results: Range Performance

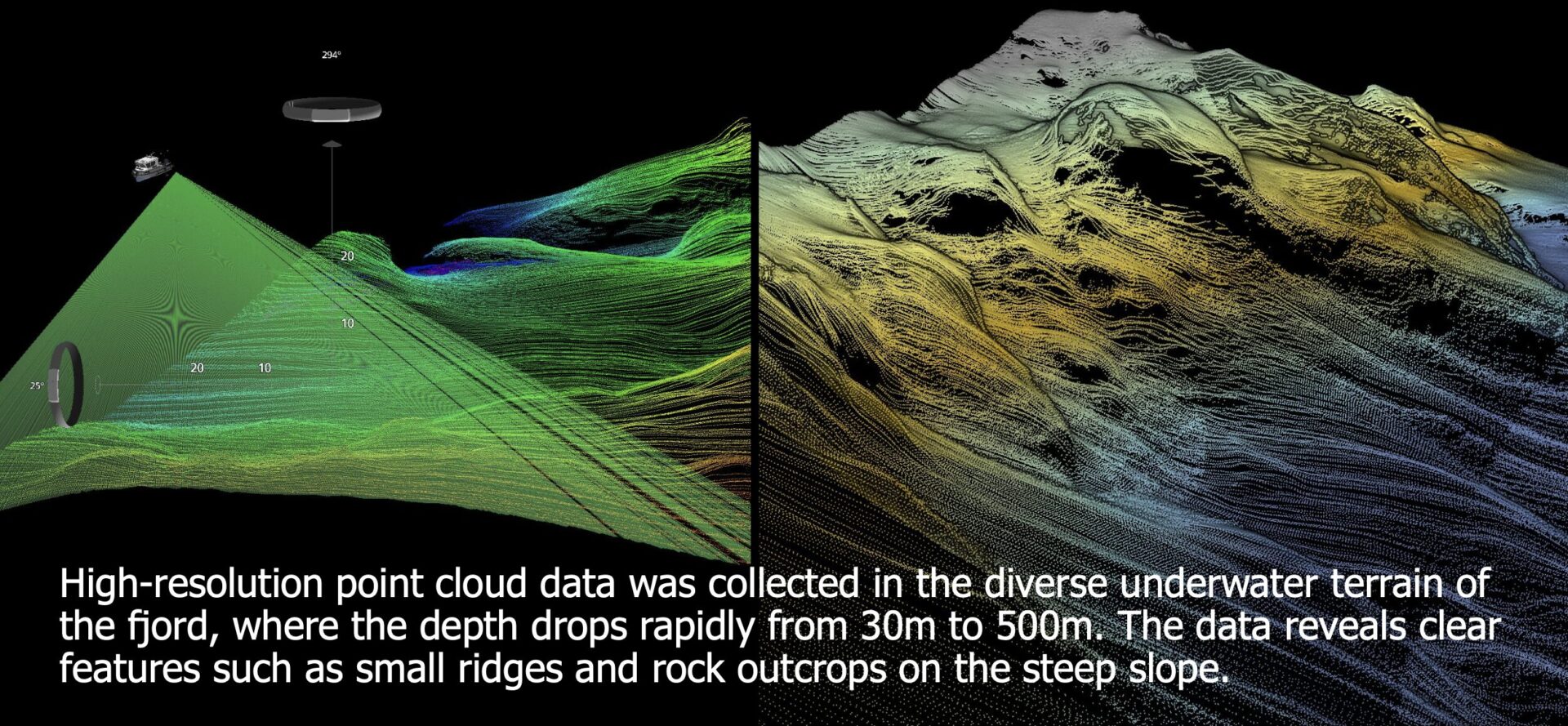

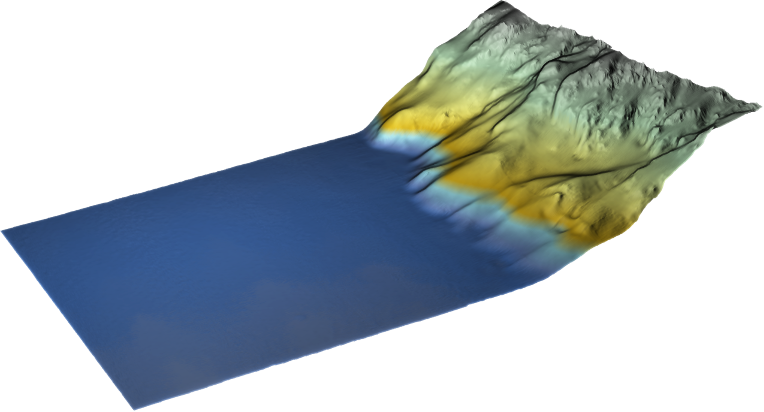

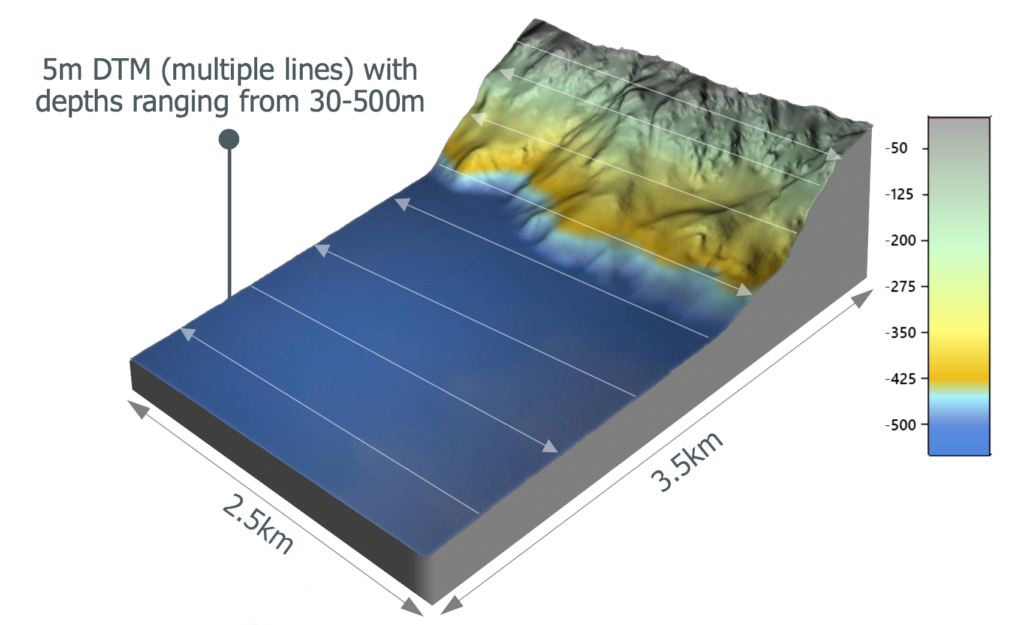

A 7.5km2 area was surveyed with multiple passes in the Trondheim Fjord, Norway, with depths ranging from 30m to 500m. Swath coverage equivalent to 2x water depth was achieved at 500m depth in a single pass. Frequency modulated (FM) pulses at lower frequencies maximises the achievable swath width by sending more energy into the water, without compromising resolution.

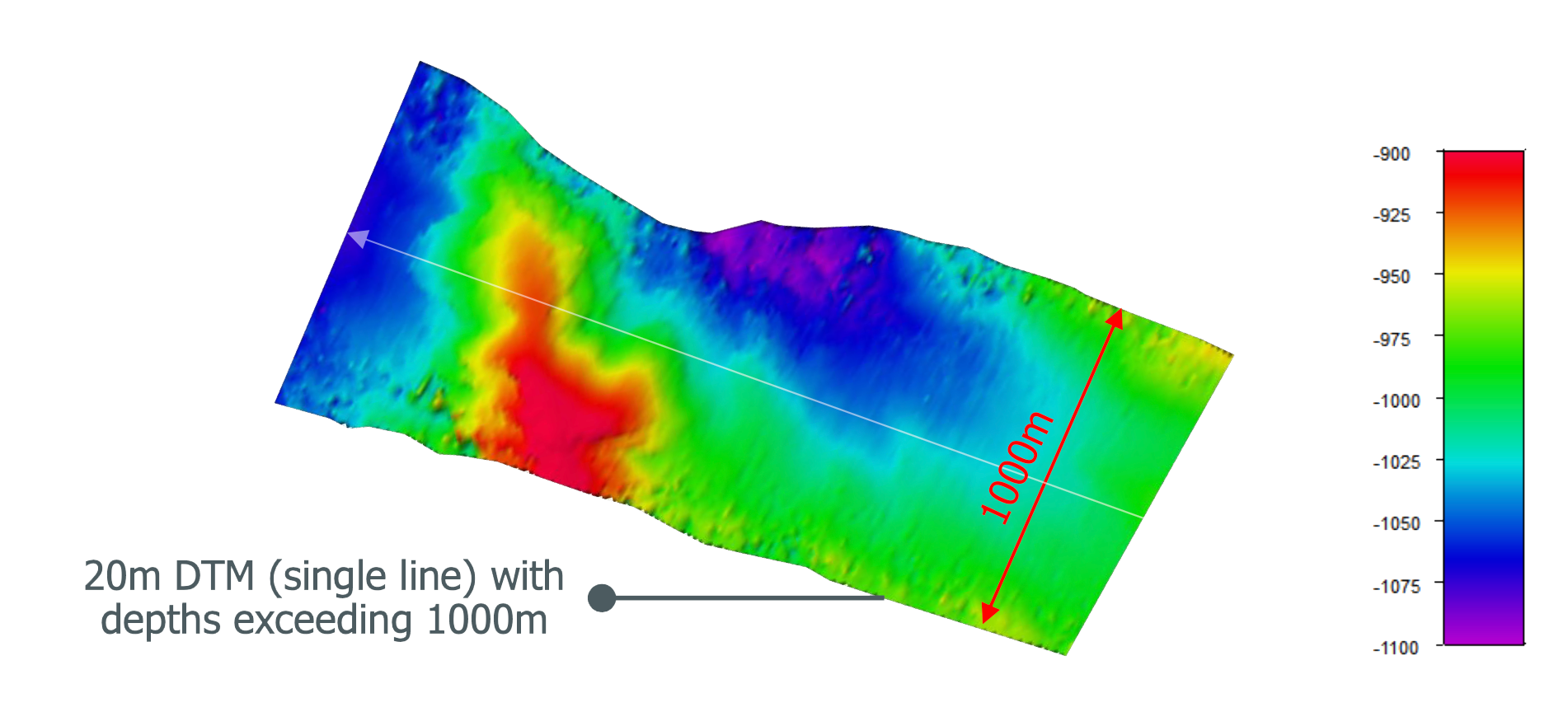

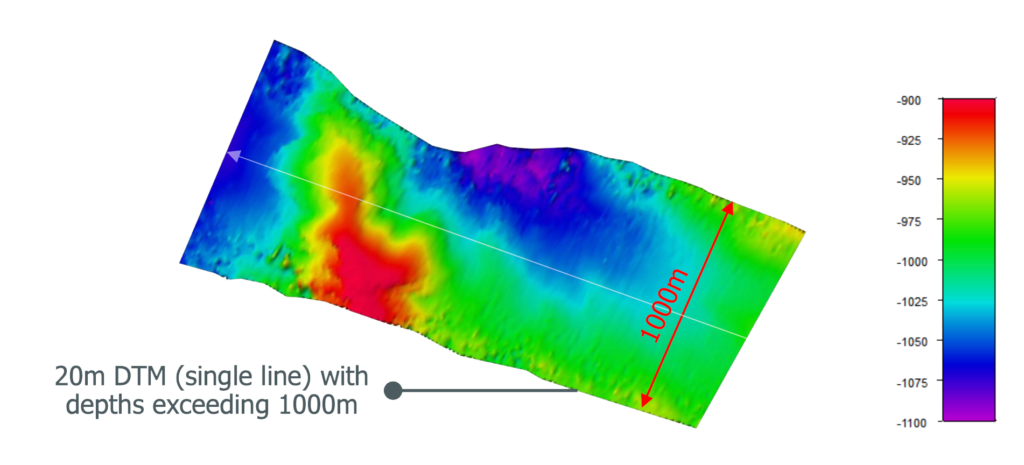

Additional tests performed off the west coast of the USA, in depths exceeding 1000m, achieved 1000m swath coverage, demonstrating consistent high performance in deeper waters.
Results: Resolution
Results: Dual Swath
- In deeper waters, where longer ranges naturally limit ping rate, the licensed Dual Swath feature upgrade enables multiple ping transmission, generating 2048 beams and doubling the number of soundings to maximise along-track coverage.
- Alternatively, it can be used to increase survey speed while maintaining the same density as single swath operating modes.
- The example shows 2 lines recorded at the same location, with the same vessel speed, in 500m water depth, gridded at 10m resolution.
- Dual Swath reduces coverage gaps on the gridded data. The average sounding density is 80 hits per grid cell, compared with 40 hits per cell for single swath.
Results: Yaw Stabilisation
- Yaw stabilisation is available as a licensed feature upgrade and compensates for vessel heading changes due to motion and weather, improving sounding distribution in the outer beams.
- This prevents gaps in coverage and reduces the need for additional infill, enabling confident use of smaller bin sizes, and more reliable target detection.

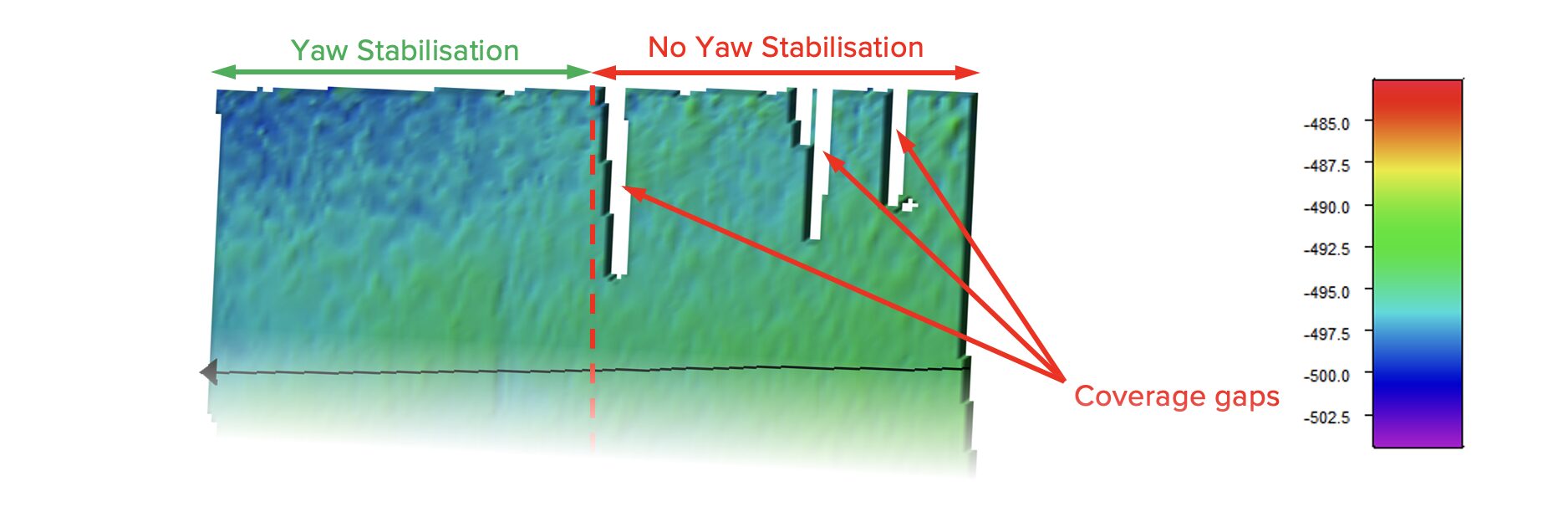

- The following example shows the gridded outer beam data from the same area surveyed with (left) and without (right) yaw stabilisation.
Key Highlights
- The WINGHEAD B57S achieves long-range mapping with a single compact unit, eliminating the need for multiple cables and complex deployments.
- Dual Swath, pitch stabilisation, and yaw stabilisation significantly improves seabed coverage and reliability of target detection.
- Field-proven performance in multiple locations,
Conclusions
The WINGHEAD B57S offers a powerful solution for shallow to medium depth multibeam mapping, combining portability, low power consumption, and high-resolution data.
- Frequency agility and long-range performance (>1250m) makes it suitable for both shallow and medium water depth operations.
- Despite its powerful capabilities, the system remains lightweight, energy-efficient, and easy to install, requiring only a single cable for the sonar, and a small topside unit.
- It can be operated either as a standalone sonar or combined with an integrated GNSS/INS subsystem provided by NORBIT.
- With support for Dual Swath (2048 beams) and full motion stabilisation (roll, pitch and yaw), the WINGHEAD B57S ensures high density, uniform coverage even in challenging sea conditions.
