NORBIT Security

NORBIT Security offers a complete portfolio of sensing solutions for both advanced vehicle navigation plus detection of threats and changes at sea during smart marine security surveillance operations of assets above and below the surface.

Header background image

GuardPoint™ 70
Intruder Detection Sonar

GuardPoint™ 70 is specifically designed for long range, open waters, 360-degree surveillance. It is perfectly suited for fixed installations such as sea bottom towers or tripods, or pier support. Best applications are for surveillance of Naval units in foreign ports, LNG terminals, Offshore platforms, Offshore Wind Farms, Naval bases, Ports, Harbors, Sensitive Targets in general.

GuardPoint™ 70 is complemented by the GuardPoint Intruder Tracking Software, designed to be powerful yet easy to use, even for inexperienced sonar operators. It automatically detects and classifies closed and open circuit divers, while minimizing false alarm for biologicals and wakes caused by boats, furthermore GuardPoint Intruder Tracking Software tracks multiple divers simultaneously, features data recording and replaying and offer Integration to third party command and control systems along with interface to underwater loud hailers.

NORTrace Software can be used to optimize the system performance or to predict performance changes in different weather conditions.

Typical detection range (in optimal conditions):

AUV, SDV, Minisubs: 1000m+

Open Circuit Divers: 900m+

Closed Circuit Divers: 400m+

All NORBIT sonars can be offered with ClearSignal ® anti fouling protection, specifically developed to protect while maximizing sound performance.

Long Range Surveillance with State-of-the-Art Sonar Head

GuardPoint™ 100
Intruder Detection Sonar

GuardPoint™ 100 is specifically designed for the most complex surveillance tasks. Its advanced STX technology (NORBIT’s steering transmit) creates a focused sharp beam. The beam can be electronically adjusted to adapt to different propagation conditions, and thereby maximizing the probability of threat detection. This allow GuardPoint™ 100 to excel in shallow waters.

GuardPoint™ 100 is complemented by the GuardPoint Intruder Tracking Software, designed to be powerful yet easy to use, even for inexperienced sonar operators. It automatically detects and classifies closed and open circuit divers, while minimizing false alarm for biologicals and wakes caused by boats, furthermore GuardPoint Intruder Tracking Software tracks multiple divers simultaneously, features data recording and replaying and offer Integration to third party command and control systems along with interface to underwater loud hailers.

NORTrace Software can be used to optimize the system performance or to predict performance changes in different weather conditions.

Typical detection range (in optimal conditions):

AUV, SDV, Minisubs: 750m+

Open Circuit Divers: 600m+

Closed Circuit Divers: 300m+

All NORBIT sonars can be offered with ClearSignal ® anti fouling protection, specifically developed to protect while maximizing sound performance.

GuardPoint™ 200
Intruder Detection Sonar

GuardPoint™ 200 is specifically designed for mid range shallow waters. Its advanced STX technology (NORBIT’s steering transmit) create a focused sharp beam which can be vertically adjusted to adapt to different propagation conditions, electronically maximizing the probability of threat detection. This allow, for example, GuardPoint™ 200 to excel in shallow waters and close quarters.

GuardPoint™ 200 is complemented by the GuardPoint Intruder Tracking Software, designed to be powerful yet easy to use, even for inexperienced sonar operators. It automatically detects and classifies closed and open circuit divers, while minimizing false alarm for biologicals and wakes caused by boats, furthermore GuardPoint Intruder Tracking Software tracks multiple divers simultaneously, features data recording and replaying and offer Integration to third party command and control systems along with interface to underwater loud hailers.

NORTrace Software can be used to optimize the system performance or to predict performance changes in different weather conditions.

Typical detection range (in optimal conditions):

AUV, SDV, Minisubs: 600m+

Open Circuit Divers: 500m+

Closed Circuit Divers: 250m+

All NORBIT sonars can be offered with ClearSignal ® anti fouling protection, specifically developed to protect while maximizing sound performance.

GuardPoint™ 400
Intruder Detection Sonar

GuardPoint™ 400 is particularly suited for ultra shallow waters (1-2m) and/or for restricted areas. GuardPoint™ 400 complements the NORBIT offering when it comes to overcome the most complicated surveillance tasks. Best when used for surveillance of power/desalination plants, rivers and borders, shallow waters in general.

GuardPoint™ 400 is complemented by the GuardPoint Intruder Tracking Software, designed to be powerful yet easy to use, even for inexperienced sonar operators. It automatically detects and classifies closed and open circuit divers, while minimizing false alarm for biologicals and wakes caused by boats, furthermore GuardPoint Intruder Tracking Software tracks multiple divers simultaneously, features data recording and replaying and offer Integration to third party command and control systems along with interface to underwater loud hailers.

NORTrace Software can be used to optimize the system performance or to predict performance changes in different weather conditions.

Typical detection range (in optimal conditions):

AUV, SDV, Minisubs: 200m+

Open Circuit Divers: 150m+

Closed Circuit Divers: 100m+

All NORBIT sonars can be offered with ClearSignal ® anti fouling protection, specifically developed to protect while maximizing sound performance.

NORTrace
Sonar Performance Prediction Software

NORTrace sonar performance prediction software computes the sonar signal propagation underwater with given parameters. Calculation and Computation Engine is based on Ray Theory with validated Noise, Sonar, Target and Environment models. It is applicable to estimate the performance of a variety of sonar systems such as ASW sonar, Mine Detection and Classification Sonar, Intruder Detection Sonar.

Applications: Parameter Optimization of Sonar Settings, Performance Evaluation of Sonar Systems, Sonar Coverage Analysis, Tactical Training, Tactical Decision Aid, Research and Development.

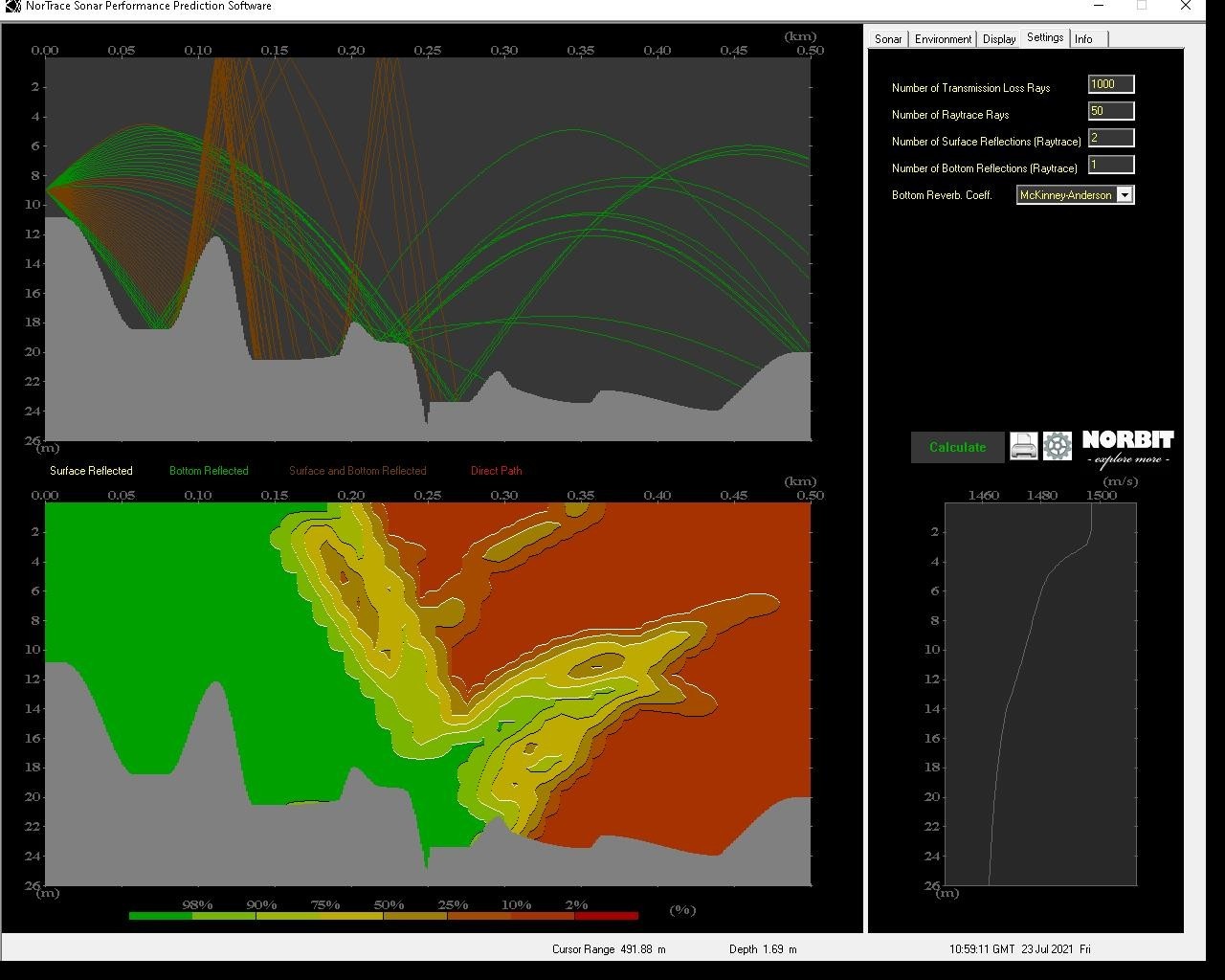

NORTrace Display with Probability of Detection Prediction

Mine Detection & Classification Solutions

WINGHEAD F11 AND WINGHEAD F11 Crossfire

NORBIT F11 and F11 Crossfire Mine Detection and Classification sonars, offer best in class resolution and compactness. At a mere 4.4 kg they can be used even on ultra small surface vehicles.
